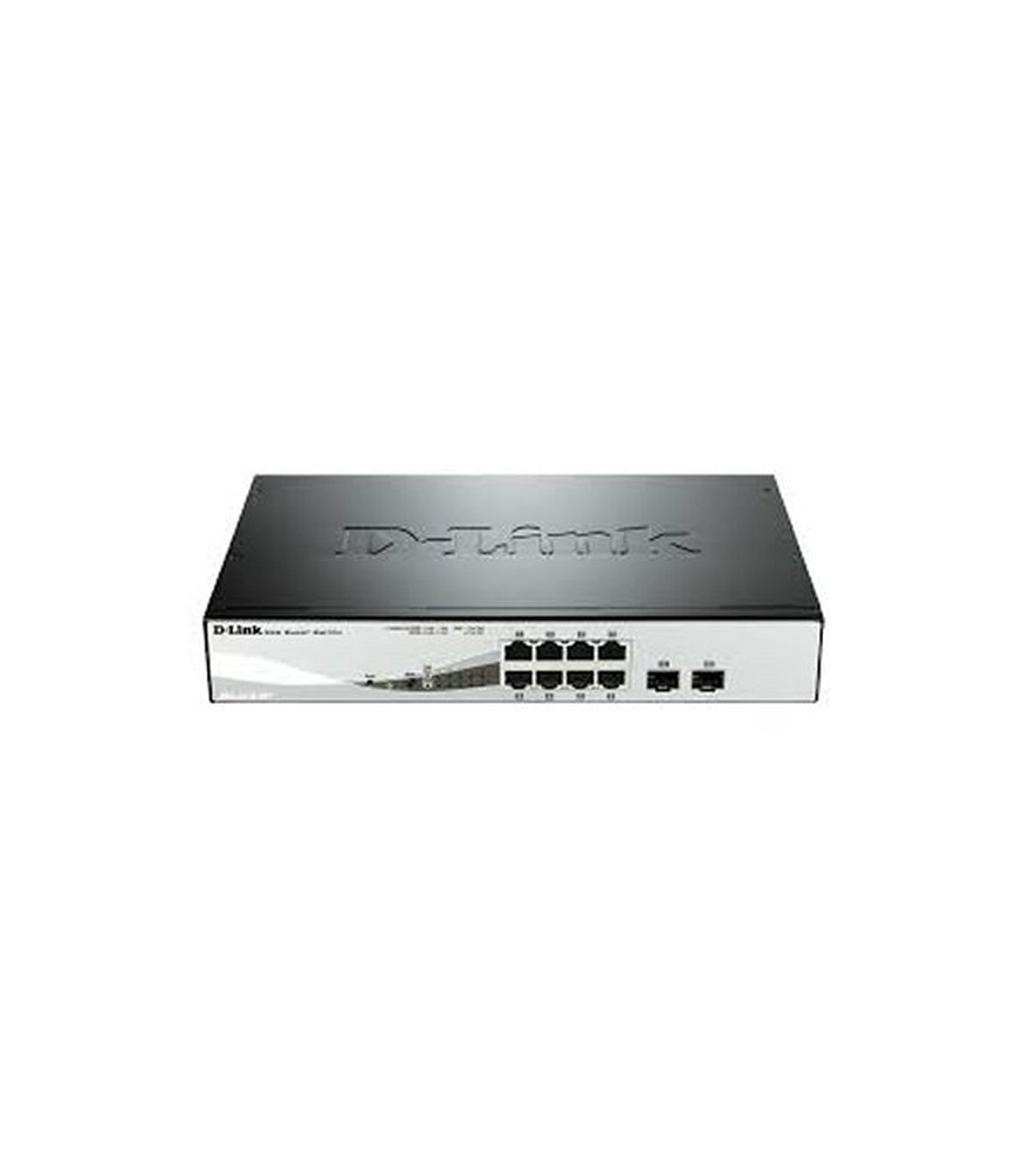

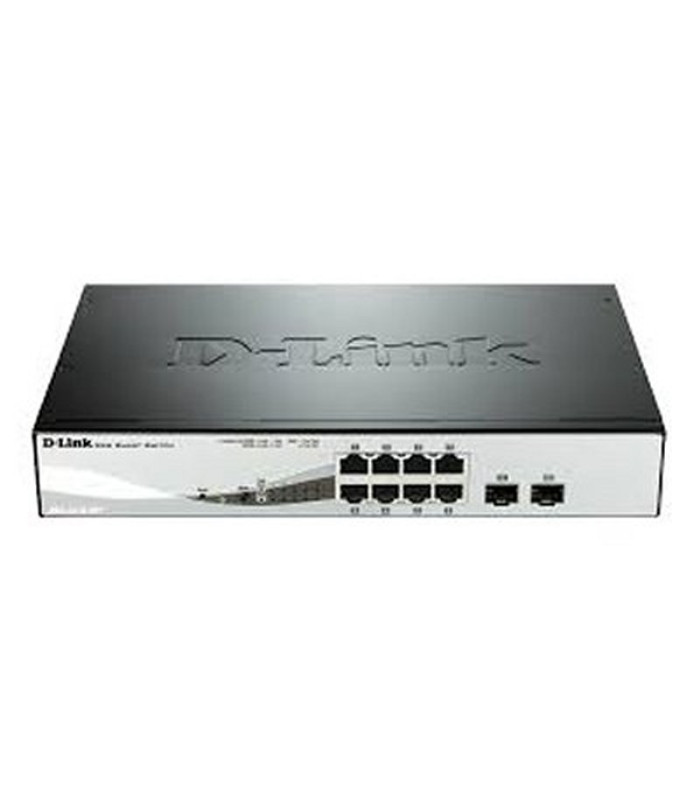

Marca D-Link Modelo DGS-1210-08P/E Especificaciones - 8 puertos 10/100/1000 Mbps - 2 Puertos SFP Standards
- IEEE 802.3 compliant
- IEEE 802.3u compliant
- IEEE 802.3ab compliance
- Soporta Half/Full-duplex operation at 10/100Mbps
- Soporta Full-duplex operation at 1000Mbps
- Soporta Auto-Negotiation for each port
- Auto MDI/MDIX
- IEEE 802.3x Flow Control support
- IEEE 802.3az compliant Rendimiento:
20Gbps
- Max.velocidad envío
14.9 Mpps
- Tamaño tabla MAC
16K Entries
- Packet Buffer
6Mbits - Jumbo Frame
Hasta 13,000 Bytes
- Alimentación:
110 to 240 VAC, 50/60HZ internal universal power supply
- Max.Consumo
60 Watts
- Consumo Standy
5.6 Watts
- Sin ventilador
- Nivel acústico:
0 dBA
- Dimensions (W x D x H)
280 x 180 x 44 mm 19-inch standard rack
1U
- Peso:
0.42kg
- LEDs
Power (per device)
Link/Activity/Speed/PoE (per 10/100/1000 Mbps port)
Link/Activity/Speed (per SFP port)
Button to switch LED display mode between PoE and Link/ActivityPower (per device)
- Certifications
CE Class A
cUL, LVD
- MTBF
503,585 Hours (DGS-1100-08)
Funciones L2
- MAC Address Table: 16K
- Flow Control
802.3x Flow Control
HOL Blocking Prevention
- Jumbo Frame up to 13,000 Bytes
- IGMP Snooping
IGMP v1/v2 Snooping
IGMP Snooping v3 Awareness
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
- MLD Snooping1
Supports MLD v1/v2 awareness
Supports 256 groups
Fast Leave
- Spanning Tree Protocol
802.1D STP
802.1w RSTP
- Loopback Detection
- 802.3ad Link Aggregation
DGS-1210-10P: Max. 5 groups per device/8 ports per group
DGS-1210-20: Max. 10 groups per device/8 ports per group
DGS-1210-28/28P: Max. 14 groups per device/8 ports per group
DGS-1210-52: Max. 26 groups per device/8 ports per group
DGS-1210-16/24/48: Max. 8 groups per device/8 ports per group
- Port Mirroring
One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
- Multicast Filtering
Forwards all unregistered groups
Filters all unregistered groups
LLDP, LLDP-MED
VLAN
- 802.1Q Tagged VLAN
- VLAN Group
Max. 256 static VLAN groups
Max. 4094 VIDs
- Management VLAN
- Asymmetric VLAN
- Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
- Auto Surveillance VLAN
Quality of Service (QoS)
- 802.1p Quality of Service
- Queue Handling
Strict
Weighted Round Robin (WRR)
- 8 queues per port
- Bandwidth Control
Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 15 Kb/s)
- CoS based on
802.1p Priority Queues
DSCP
ToS
TCP/UDP p
