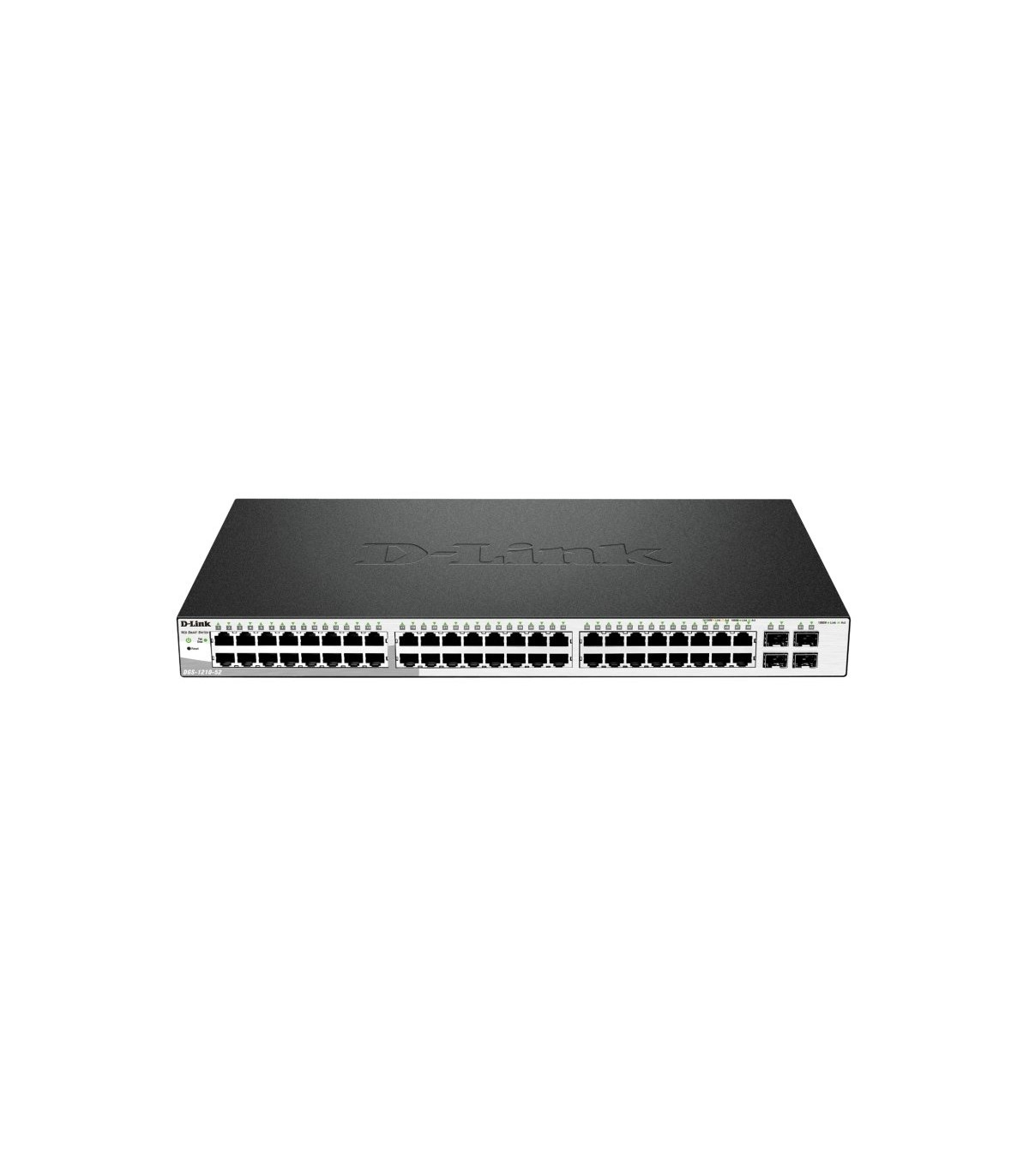

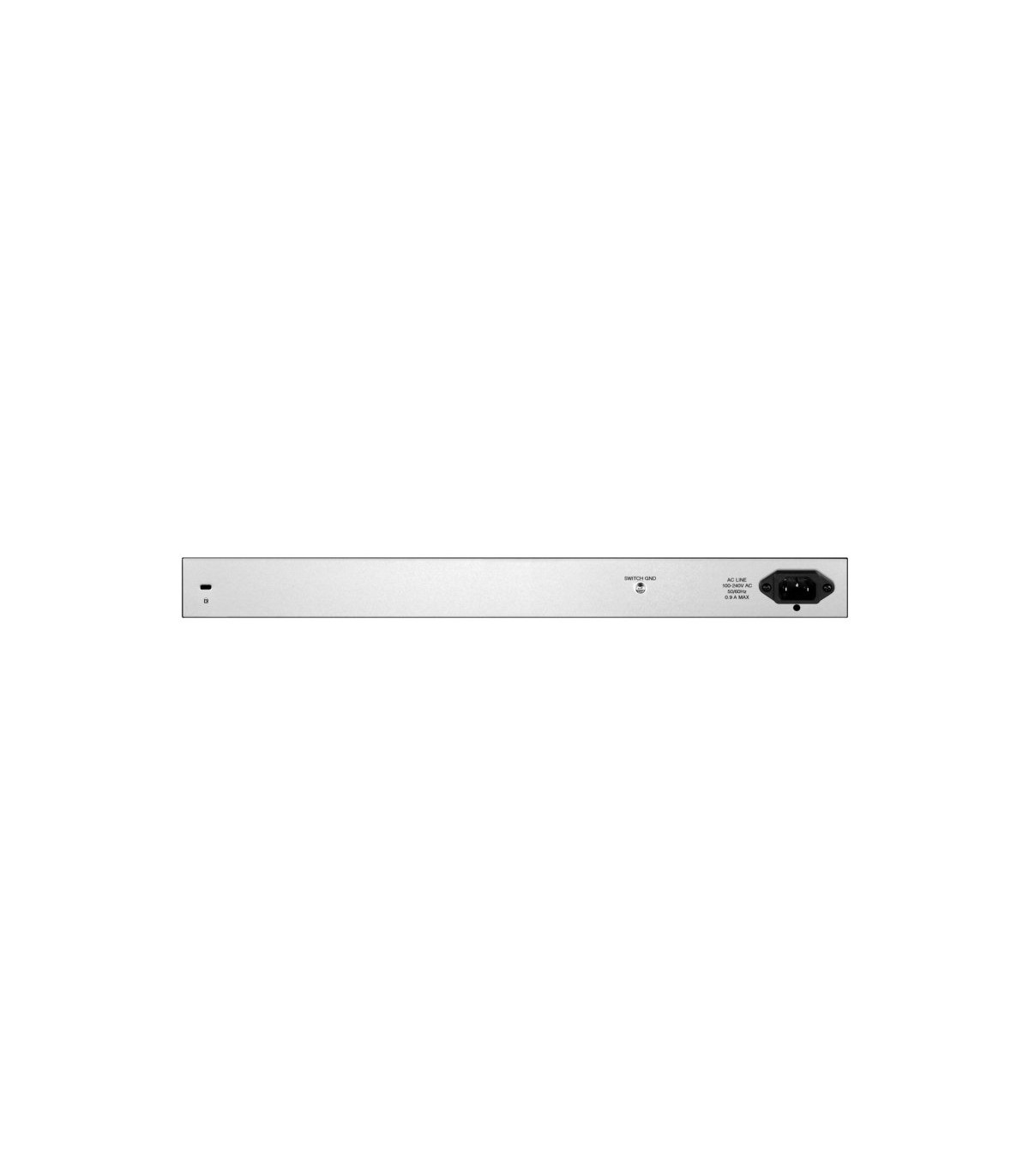

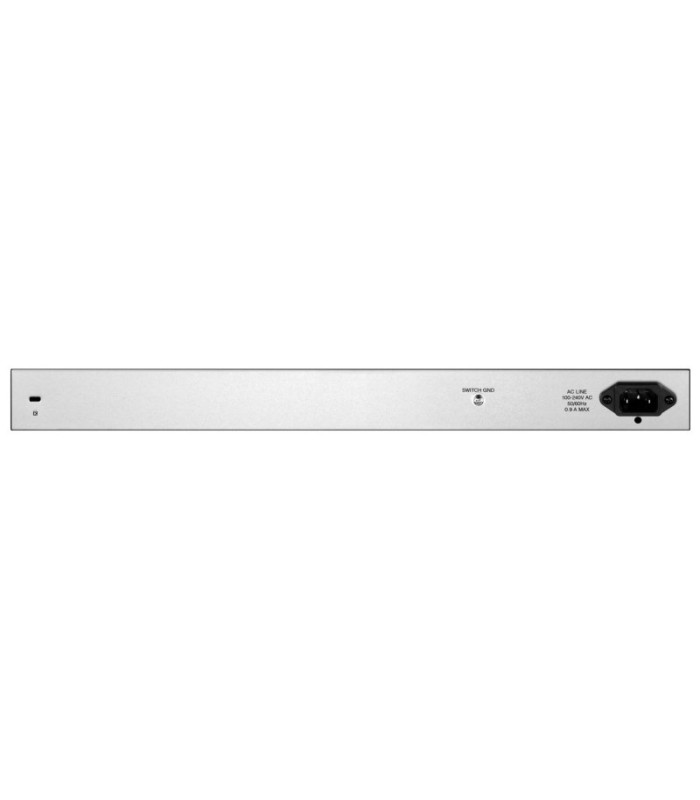

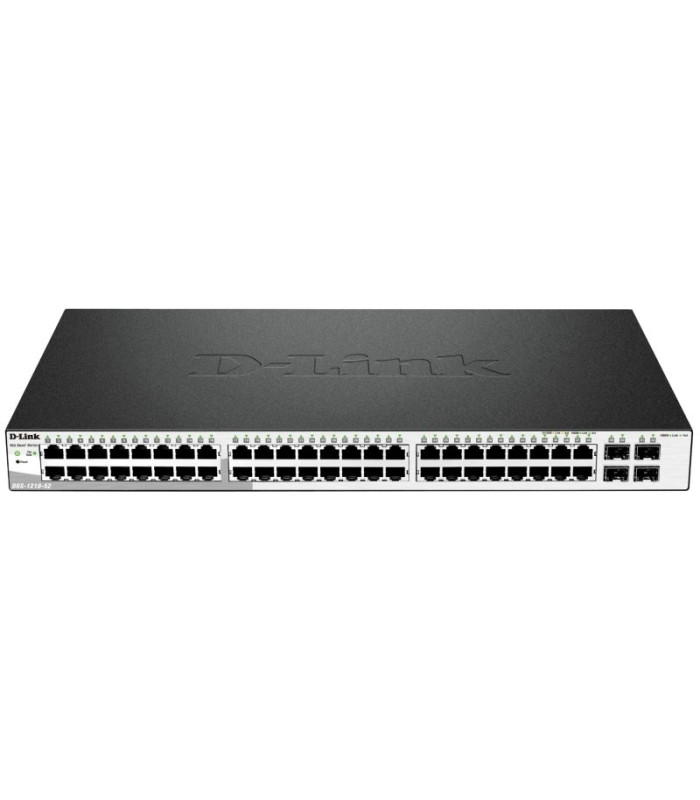

Marca DLink Modelo DGS-1210-52/E Interfaz - 48 x Puertos 10/100/1000BASE-TX
- 4 x Puertos SFP Rendimiento - Capacidad del switch: 104 Gbps
- 64-Byte Packet Forwarding Rate: 77.4 Mpps
- MAC Address Table Size: 16K
- Packet Buffer: 3 MB por dispositivo
- Jumbo Frame: hasta 9,216 Bytes Características Funcionalidades L2
- MAC Address Table: 16K entries
- IGMP Snooping:
IGMP v1/v2 Snooping
Supports 256 IGMP groups
Supports at least 64 static multicast addresses
IGMP per VLAN
Supports IGMP Snooping Querier
- Loopback Detection
- 802.3ad Link Aggregation:
Maximum of 26 groups/8 ports per group
- LLDP
- LLDP-MED
- Jumbo Frame: Up to 9,216 bytes
- Spanning Tree Protocol: 802.1D STP
802.1w RSTP
- Flow Control: 802.3x Flow Control
HOL Blocking Prevention
- Port Mirroring: One-to-One
Many-to-One
Supports Mirroring for Tx/Rx/Both
- Multicast Filtering:
Forwards all unregistered groups
Filters all unregistered groups
- Configurable MDI/MDIX:
MLD snooping v1/v2 (256 groups)
VLAN
- 802.1Q
- VLAN Group
Max. 256 static VLAN groups
- Configurable VID from 1 - 4094
- Asymmetric VLAN
- Auto Voice VLAN
Max. 10 user-defined OUI
Max. 8 default OUI
- Auto Surveillance VLAN
Calidad de servicios (QoS)
- 802.1p Quality of Service
- 8 queues per port
- Queue Handling
Strict
Weighted Round Robin (WRR)
- Bandwidth Control
Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps)
- QoS based on:
802.1p Priority Queues
DSCP
ToS
IPv6 Traffic Class
TCP/UDP port
Funcionalidades L3
- IP Interface
Supports 1 interface
- IPv6 Neighbor Discovery (ND)
Lista de conrol de acceso (ACL)
- Max. 50 access list
- Max. 768 rules shared by IPv4, MAC and IPv6
- Each rule can only be associated with a single port
- ACL based on
802.1p priority
VLAN
MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- IPv6 Traffic Class
Seguridad
- Broadcast/Multicast/Unicast Storm Control
- D-Link Safeguard Engine
- DHCP Server Screening
- IP-MAC-Port Binding (Smart Binding)
Supports 512 address binding entries
ARP Inspection
ARP + IP Inspection
Supports DHCP Snooping
- 802.1X Port-based Access Control
- ARP Spoofing Prevention
Max. 64 entries
- Traffic Segmentation
- SSH v2
- SSL
Supports v1/v2/v3
- Port Security
Supports up to 64 MAC addresses per port
- Duplicate address detection
AAA
- 802.1X Authentication
Supports local/RADIUS database
Supports port-based access control
Supports EAP, OTP, TLS, TTLS, PEAP
- IPv6 RADIUS Server
- Support MD5 authentication
Gestión
- Web-based GUI
- D-Link Network Assistant Utility
- Compact CLI
- Telnet Server
-
