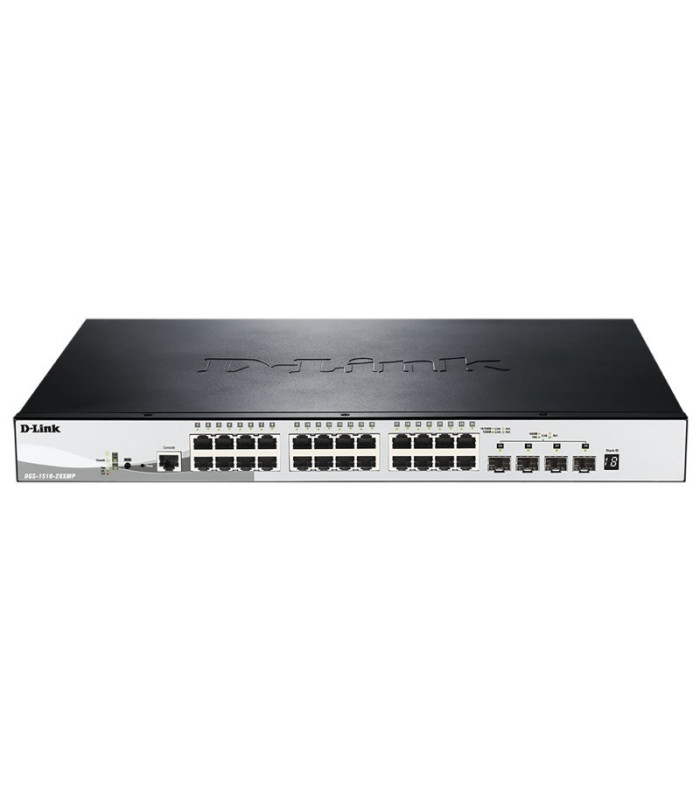

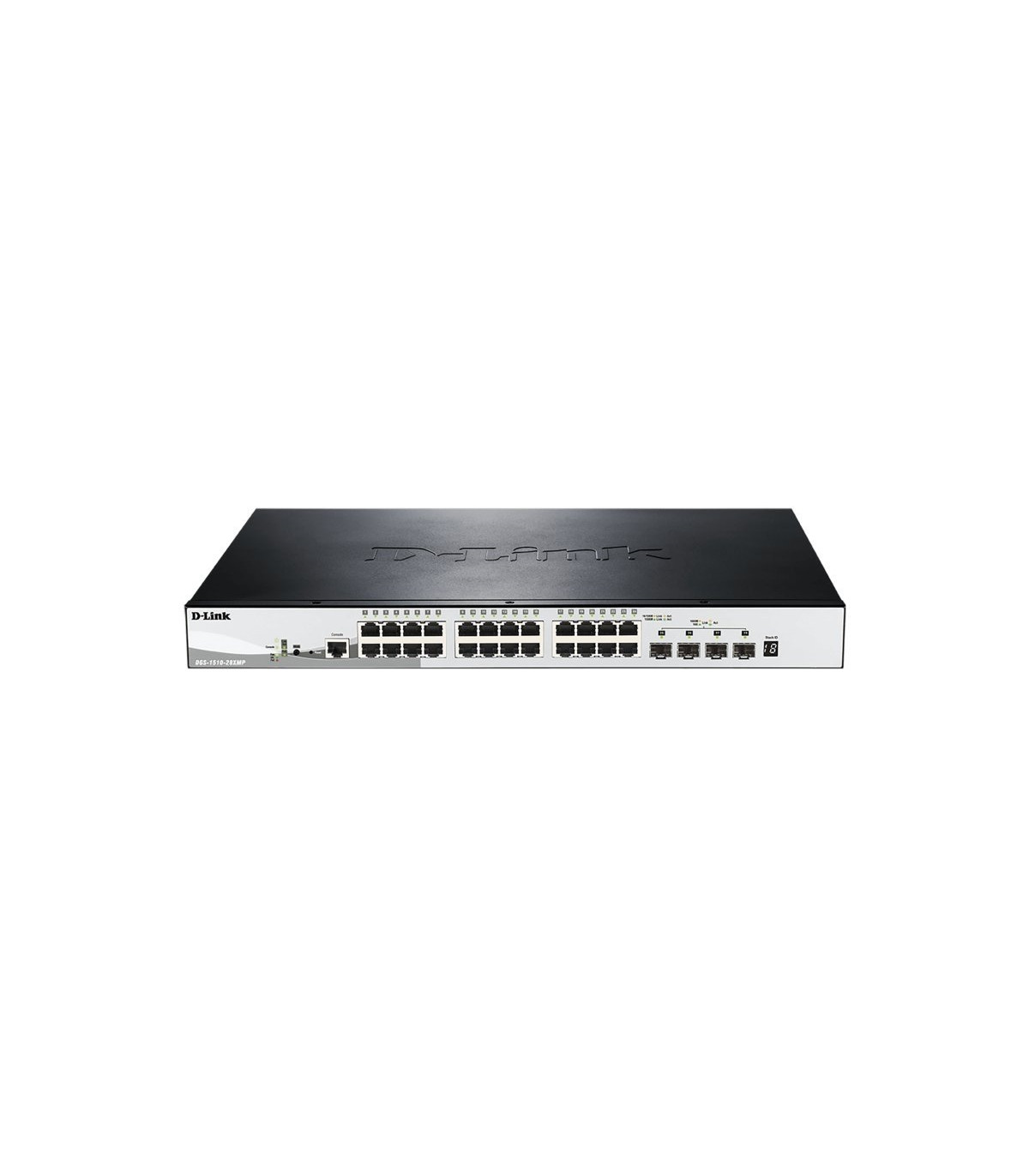

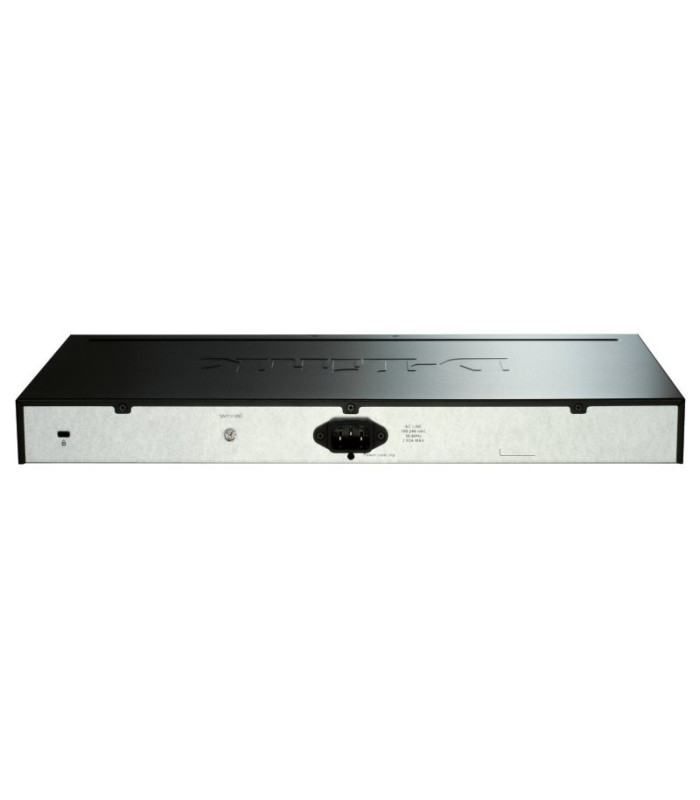

| Marca | D-Link |
| Modelo | DGS-1510-28XMP/E |
| Puertos | - 24 x 10/100/1000 Mbps PoE capable + 4 x 10G SFP+ |
| Estándares | - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - 802.3ae 10 GbE - IEEE 802.3x Flow Control for Full-Duplex Mode - Auto-negotiation |
| Características | - Full/half duplex for 10/100 Mbps and Gigabit speed - Switching capacity: 128 Gbps - Método de transmisión: Store-and-forward - Tabla de direcciones MAC: 16,000 entradas por dispositivo - Maximum 64 bytes Packet Forwarding Rate: 95.24 Mpps - PoE Standard: IEEE 802.3af, 802.3at Stackability - Virtual Stacking Support - Physical Stacking L2 Features - MAC Address Table: Up to 16,384 - Flow Control - Jumbo Frame up to 9,216 Bytes - IGMP Snooping - MLD Snooping - Spanning Tree Protocol - Loopback Detection v4.07 - 802.3ad Link Aggregation - Port Mirroring - Multicast Filtering - Ethernet Ring Protection Switching (ERPS) VLAN - 802.1Q Tagged VLAN - 4K VLAN Groups - Configurable VID: 0~4094 - GVRP - Asymmetric VLAN - Auto Voice VLAN - Auto Surveillance VLAN 2.1 - MAC-based VLAN - Protocol-based VLAN Quality of Service (QoS) - CoS based on - 802.1p Quality of Service - Queue Handling - 8 queues per port - Bandwidth Control L3 Features - ARP - IPv6 Neighbour Discovery (ND) - 16 IP interfaces - Default Routing - Static Routing - UDP helper Access Control List (ACL) - ACL based on - ACL Actions - Max. 256 access list - Max. 768 rules - Single or multiple ports (each rule) - Time-based ACL - ACL Statistics Security - Port Security - Broadcast/Multicast/Unicast Storm Control - Dynamic ARP Inspection - D-Link Safeguard Engine - DHCP Server Screening - ARP Spoofing Prevention - SSH - BPDU Attack Protection - DoS Attack Prevention - SSL - Traffic Segmentation - IP-MAC-Port Binding AAA - Compound Authentication - 802.1X Port and MAC-based Authentication - Web-based Access Control (WAC) - Guest VLAN - RADIUS and TACACS+ authentication for switch access - RADIUS and TACACS+ accounting - MAC-based Access Control (MAC) - Japan Web-based Access Control (JWAC) Management - Command Line Interface (CLI) - Telnet Server - TFTP Client - IPv6 Neighbor Discovery - Configurable MDI/MDIX - SNMP - SNMP Trap - System Log - Debug command - Dual images - Surveillance mode - DHCP Client - D-Link Network Assistant support - SNTP - ICMPv6 - IPv4/v6 Dual Stack - DHCP Auto Configuration - RMON v1 - LLDP, LLDP-MED - DHCP relay - Web-based GUI - TFTP Client - NTP - Telnet client (supports CLI only) |
| Otras Caracteristicas | Fisicas - Dimensiones: 440 x 308 x 44 mm - Peso: 4.25 kg Certificaciones - CE - FCC - C-Tick - VCCI - BSMI |
| Fecha Revisión | 09-06-2022 por MPM |
