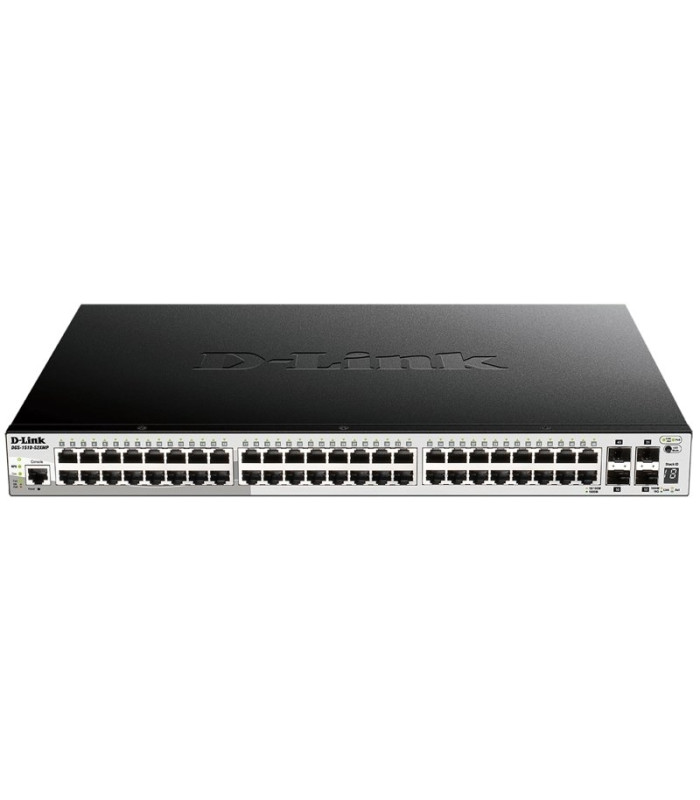

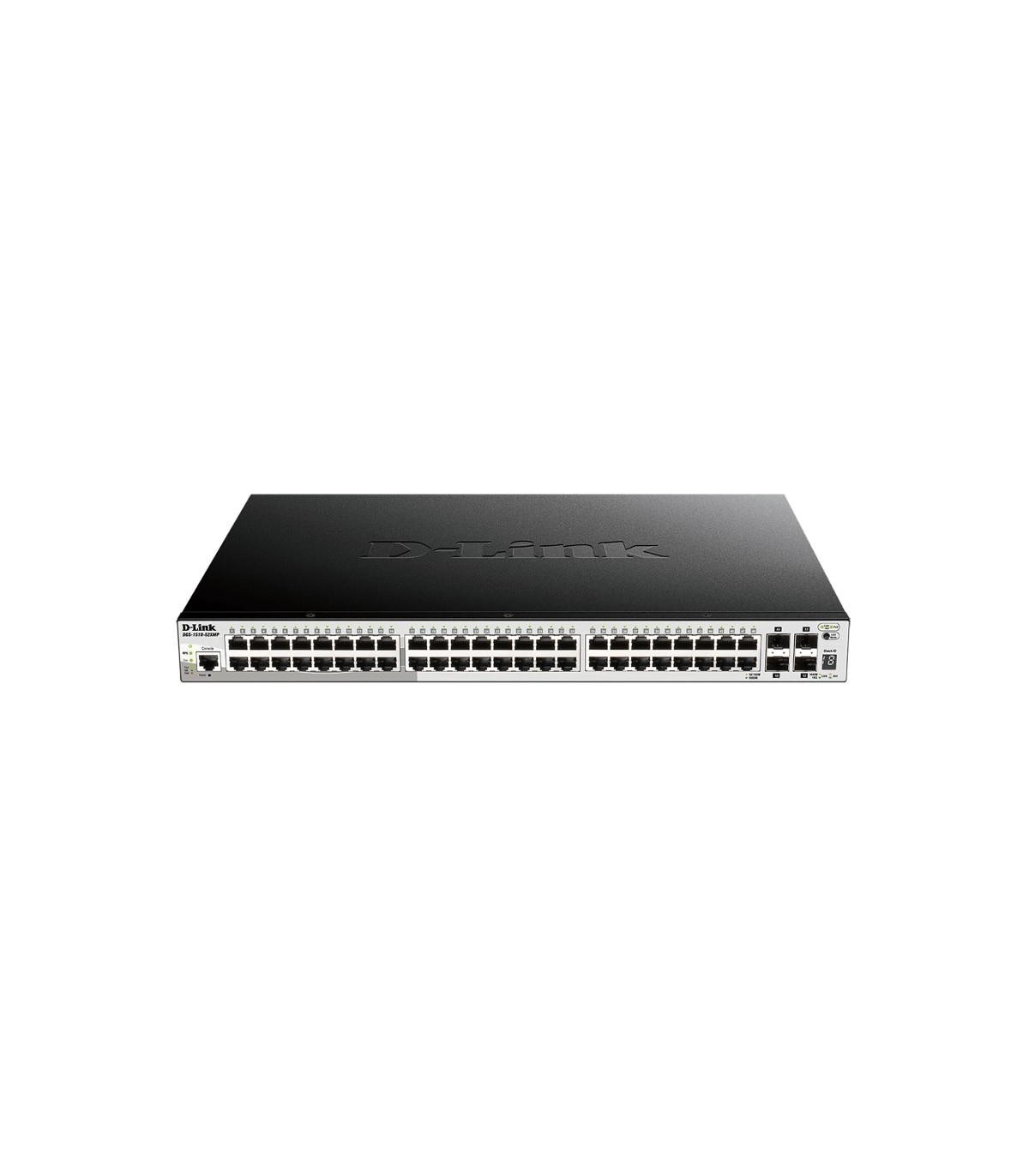

Marca D-Link Modelo DGS-1510-52XMP/E Puertos - 48 x 10/100/1000 Mbps PoE capable
- 4 x 10G SFP+ Estándares - IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- 802.3ae 10 GbE
- IEEE 802.3x Flow Control for Full-Duplex Mode
- Auto-negotiation Características - Full/half duplex for 10/100 Mbps and Gigabit speed
- Switching capacity: 176 Gbps
- Método de transmisión: Store-and-forward
- Tabla de direcciones MAC: 16,000 entradas por dispositivo
- Maximum 64 bytes Packet Forwarding Rate: 130.95 Mpps
- PoE Standard: IEEE 802.3af, 802.3at
- PoE Puertos del 1 a 48 hasta 30W
Stackability
- Virtual Stacking Support
- Physical Stacking
L2 Features
- MAC Address Table: Up to 16,384
- Flow Control
- Jumbo Frame up to 9,216 Bytes
- IGMP Snooping
- MLD Snooping
- Spanning Tree Protocol
- Loopback Detection v4.07
- 802.3ad Link Aggregation
- Port Mirroring
- Multicast Filtering
- Ethernet Ring Protection Switching (ERPS)
VLAN
- 802.1Q Tagged VLAN
- 4K VLAN Groups
- Configurable VID: 0~4094
- GVRP
- Asymmetric VLAN
- Auto Voice VLAN
- Auto Surveillance VLAN 2.1
- MAC-based VLAN
- Protocol-based VLAN
Quality of Service (QoS)
- CoS based on
- 802.1p Quality of Service
- Queue Handling
- 8 queues per port
- Bandwidth Control
L3 Features
- ARP
- IPv6 Neighbour Discovery (ND)
- 16 IP interfaces
- Default Routing
- Static Routing
- UDP helper
Access Control List (ACL)
- ACL based on
- ACL Actions
- Max. 256 access list
- Max. 768 rules
- Single or multiple ports (each rule)
- Time-based ACL
- ACL Statistics
Security
- Port Security
- Broadcast/Multicast/Unicast Storm Control
- Dynamic ARP Inspection
- D-Link Safeguard Engine
- DHCP Server Screening
- ARP Spoofing Prevention
- SSH
- BPDU Attack Protection
- DoS Attack Prevention
- SSL
- Traffic Segmentation
- IP-MAC-Port Binding
AAA
- Compound Authentication
- 802.1X Port and MAC-based Authentication
- Web-based Access Control (WAC)
- Guest VLAN
- RADIUS and TACACS+ authentication for switch access
- RADIUS and TACACS+ accounting
- MAC-based Access Control (MAC)
- Japan Web-based Access Control (JWAC)
Management
- Command Line Interface (CLI)
- Telnet Server
- TFTP Client
- IPv6 Neighbor Discovery
- Configurable MDI/MDIX
- SNMP
- SNMP Trap
- System Log
- Debug command
- Dual images
- Surveillance mode
- DHCP Client
- D-Link Network Assistant support
- SNTP
- ICMPv6
- IPv4/v6 Dual Stack
- DHCP Auto Configuration
- RMON v1
- LLDP, LLDP-MED
- DHCP relay
- Web-based GUI
- TFTP Client
- NTP
- Telnet client (supports CLI only) Otras Caracteristicas Fisicas
- Dimensiones: 440 x 308 x 44 mm
- Peso: 4.4
